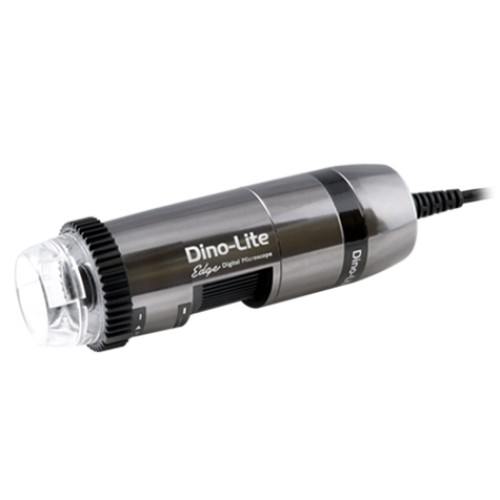

Dino-Lite EDGE 5 Mpxl, polarisator, metall, EDOF/EDR/AMR, långt fokusavstånd

14.498 kr

Artikelnr: 43-AM7915MZTL Kategorier: ,


Beskrivning

43-AM7915MZTL Dino-Lite Mikroskop > Långt fokusavstånd mindre än 140x > Med polarisator, Dino-Lite Mikroskop > Storsäljare för industriapplikationer

  • AMR (Automatisk förstoringsavläsning)
  • EDOF (Extra stort skärpedjup)
  • EDR (Extra stort exponeringsomfång)
  • FLC (Flexibel ljuskontroll)

The AM7915MZTL is part of the Long Working Distance (LWD) range and with its Long Working Distance and magnification range from 10 – 140x,it is suitable for a wide range of applications where extra distance to the object or a larger field of view is required.


USBMag 10 2205 megapixelEDOFEDRAMRPolariserFLCexch-cap


With the Extended Dynamic Range (EDR) feature,the details of darker or brighter areas within the object can be revealed by stacking images at different exposure levels. The Extended Depth of Field (EDOF) feature automatically stacks images at different focus level to improve the depth of field on rough or uneven surfaces. The AMR function is of particular importance when the measurement functions are frequently used. Because of the built-in polarization filter this model is ideal when working with shiny or reflective objects such as metal,plastic,glass,jewelry,electronics,etc.

The main features of the AM7915MZTL are:

• 5 Megapixel Edge sensor
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• 10-140x magnification
• Long working distance
• Automatic Magnification Reading (AMR)
• Adjustable polarizer
• Flexible LED Control (FLC)
• And more…

(*EDOF/EDR only functions under Windows OS)


MAGNIFICATION RATEWORKING DISTANCE*FIELD OF VIEW(X)FIELD OF VIEW(Y)DEPTH OF FIELD
Listed values may differ slightly *Without front cap  Unit = mm
10234.539.029.212.0
20112.519.514.64.5
3072.513.09.73.1
4054.59.87.31.8
5043.57.85.81.2
6037.56.54.80.9
7033.75.64.20.6
8031.34.93.60.5
9029.94.33.20.37
10029.23.92.90.28
11029.13.52.60.22
12029.33.32.40.17
13029.83.02.20.12
14030.52.82.10.09

Lighting
Light/ LED typeWhite
Number of LEDs8
LED on/off switchable:Yes
Infrared filterIR cut-filter >650 nm
Diffuser availableYes (N3C-D included)
Emission filterNo
PolarizerYes,linear
Optics
Magnification10-140x
Macro zoomNo
Working distanceLong
Lens typeGlass with anti-reflection coating
Sensor
Sensor typeCMOS
Resolution5 Megapixel (2592×1944)
Maximum frame rate30 fps
Compatibility
InterfaceUSB 2.0
Operating systemWindows 7,8,10 &11,MacOS 10.9 and up
SoftwareDinoCapture 2.0 (Windows),DinoXcope (Mac OS)
Supported image formats (Windows)BMP,GIF,PNG,JPG,TIF,RAS,PNM,TGA,PCX,MNG,WBMP,JP2,JPC,PGX
Supported video formats (Windows)WMV,FLV,SWF
Supported image formats (MacOS)JPEG,PNG
Supported video formats (MacOS)MOV (max 1.3MP)
Imaging standardsDirectShow,UVC
WifiWireless-ready,requires the WF-10 WiFi streamer (optional)
Housing
Housing materialMetal housing
Dimensions10.5cm (L) x 3.2cm (D)
Weight137g
Cable length1.8m
Features
Special featureAutomatic Magnification Reading (AMR),Extended Dynamic Range (EDR),Extended Depth of Field (EDOF),Flexible LED Control (FLC)
MeasurementYes
CalibrationYes
Microtouch sensorYes
ESD safeYes
Information
Package contentsMicroscope,carry pouch,calibration target,user manual,N3C-O- Open cap,N3C-C- Closed cap,N3C-D- Diffuser cap,N3C-E- Extension cap,N3C-L- Long cap,N3C-S- Side light cap
Warranty information2 years European warranty
Regulatory approvalCE,FCC,ROHS
Price range€1100,00 – €1300,00

Ytterligare information

Anslutning

Belysning

Fokusavstånd

Metallhus

Polarisator

Produkt-typ

Upplösning

Förstoring
